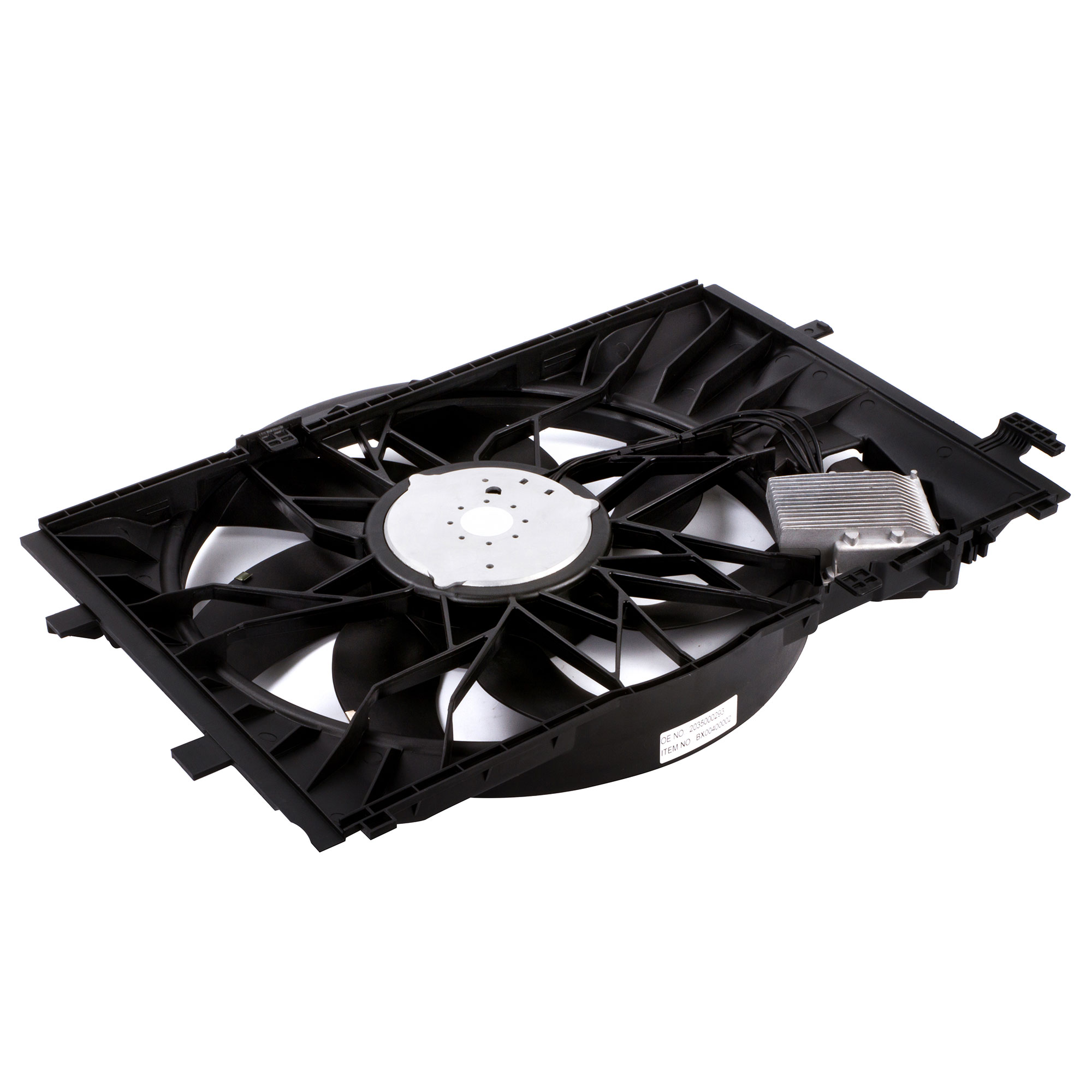

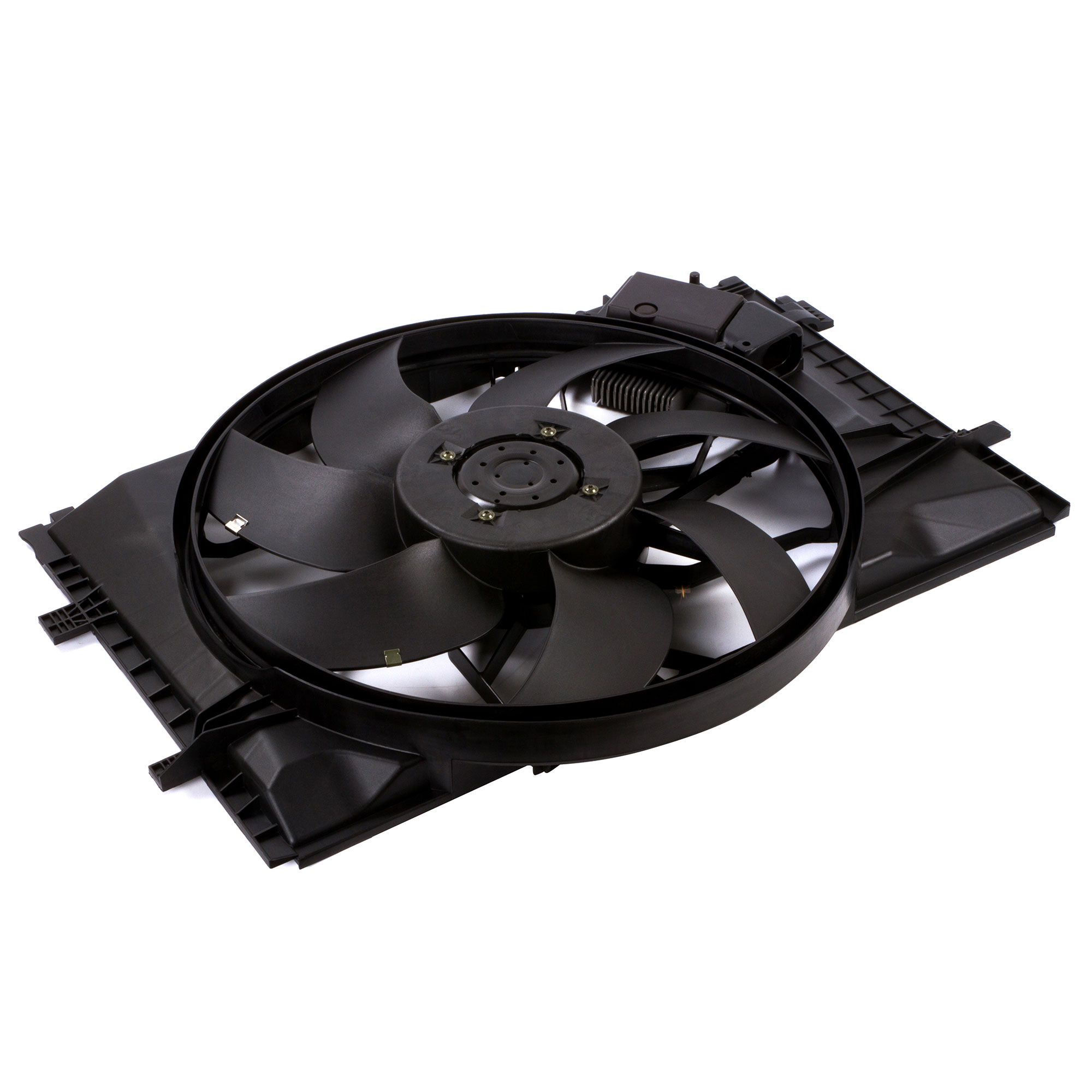

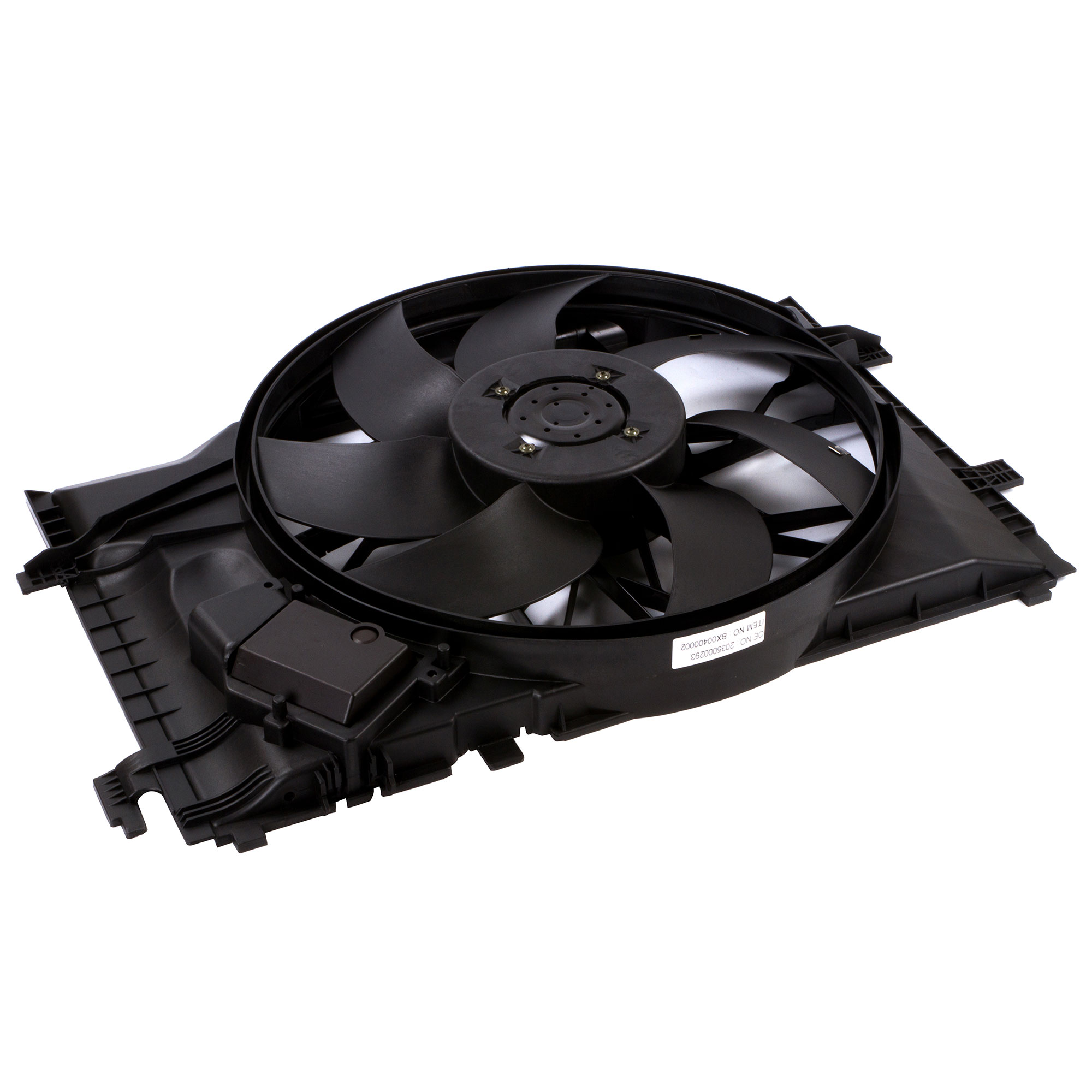

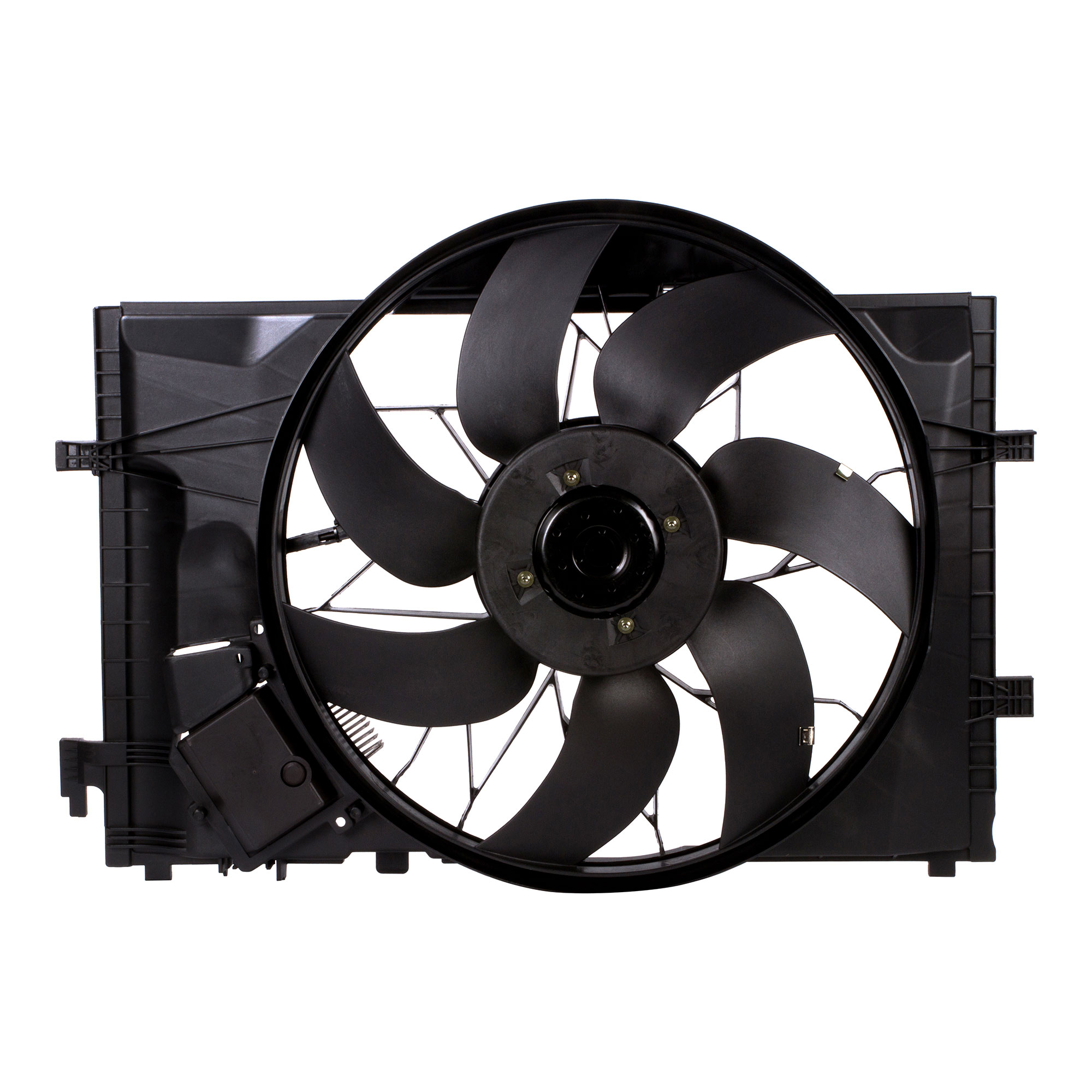

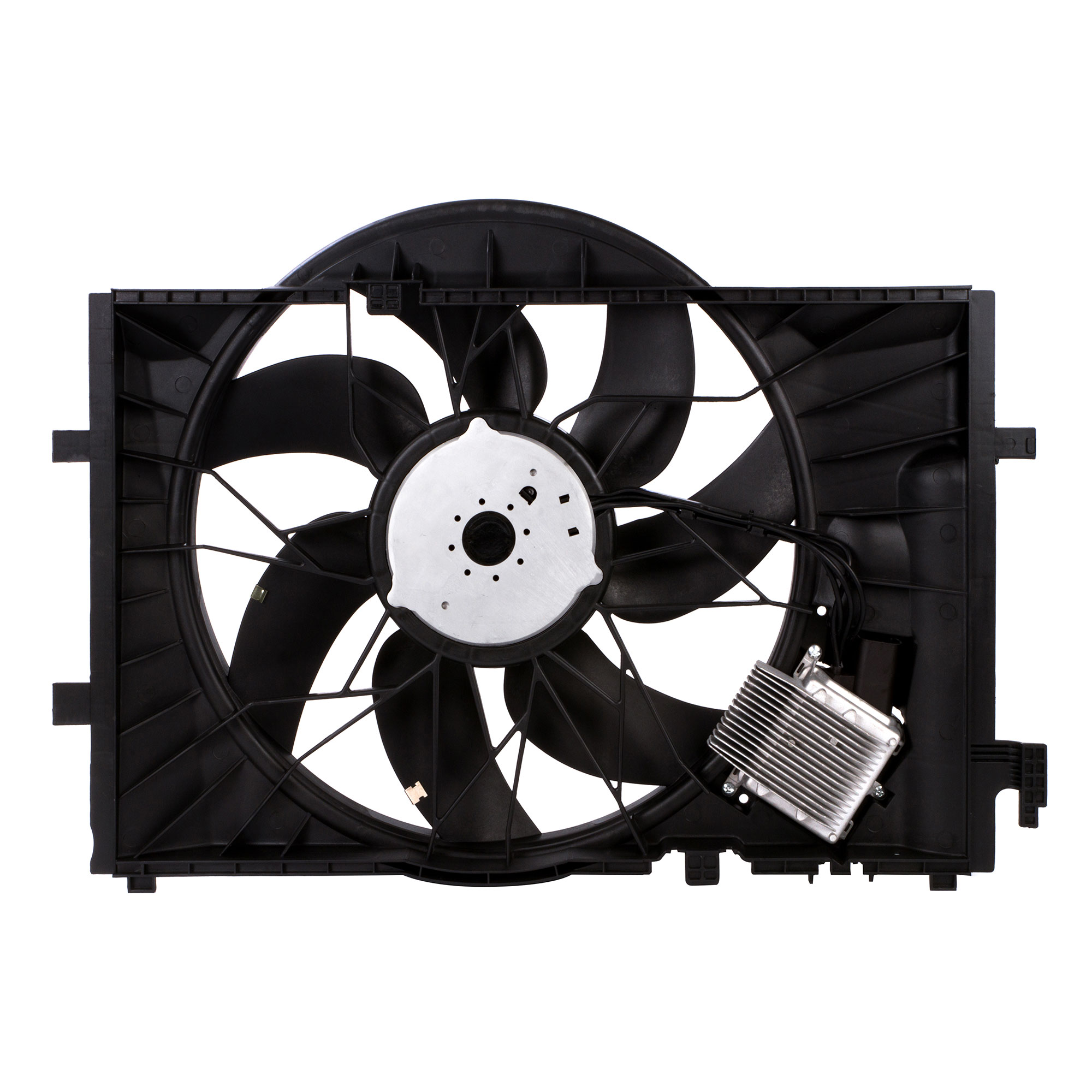

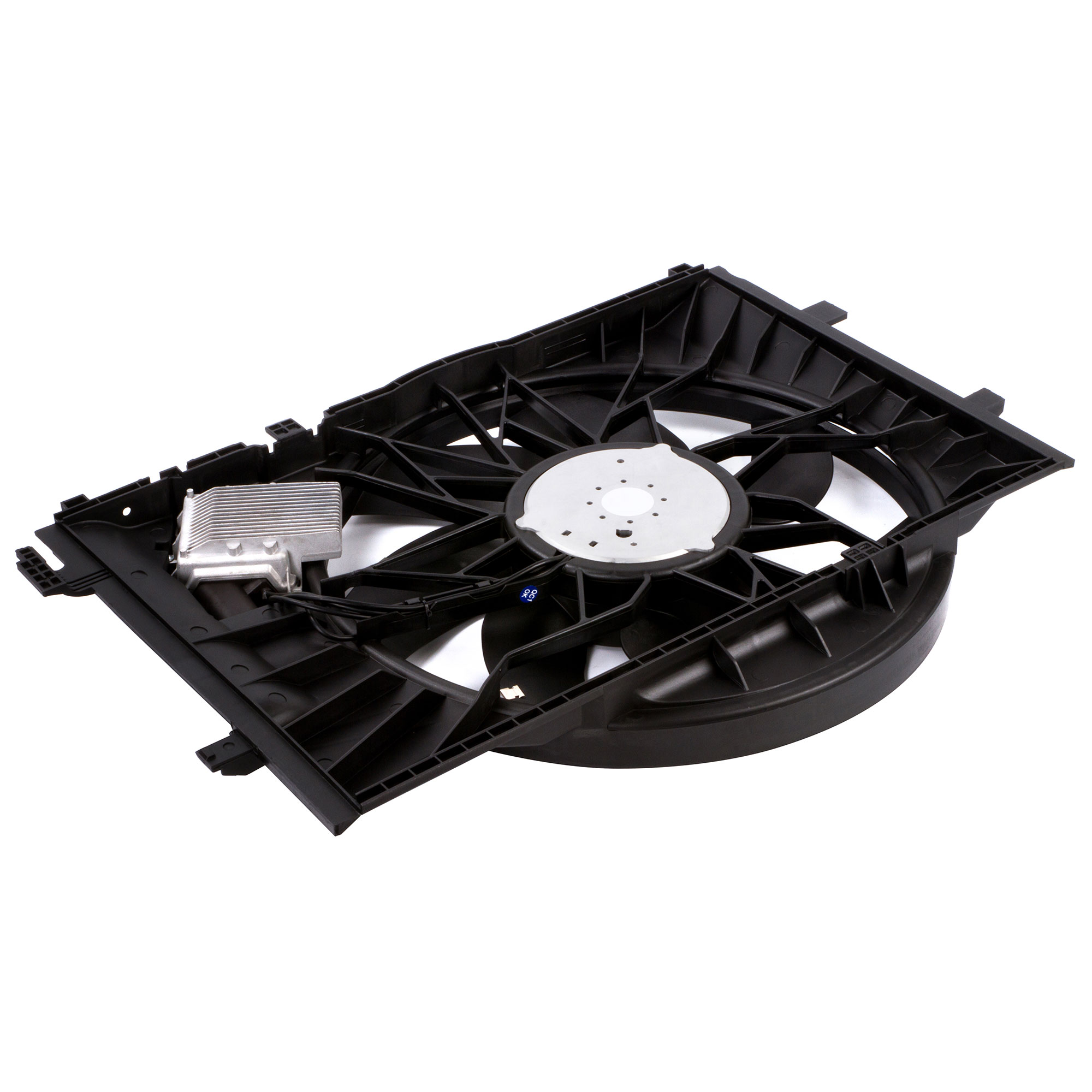

BOXI 600W Engine Cooling Fan Assembly
BOXI SKU#: BX00400002-1
$193.79
- ➤ Designed for Mercedes-Benz W203 and W209 platforms, covering a wide range of C-Class and CLK-Class models from 2004–2009, including AMG variants.
- ➤ Replaces OEM Part Number 2035000293 (203 500 02 93), ensuring correct integration with factory cooling systems.
- ➤ Delivers approximately 897 CFM airflow, balancing strong cooling output with controlled operation.
- ➤ Constructed using a reinforced nylon shroud with aluminum and plastic fan blades; overall unit weight is 16.25 lbs with dimensions of 32 in × 22.5 in × 7 in.
- ➤ 2-year warranty
17 in stock
Placement on Vehicle:Front
Package Included:1x Cooling Fan Assembly
Why Choose BOXI 600W Engine Cooling Fan Assembly?
- ➤ High-Power Cooling Capability: 600-watt output supports effective heat management for higher-performance engines and demanding driving conditions.
- ➤ Integrated Control Module: Enhances responsiveness and fan speed regulation for stable engine temperature control.
- ➤ Vehicle-Specific Engineering: Built to match factory fitment and electrical connections, reducing installation time and complexity.
- ➤ Durable & Heat-Resistant Design: Quality materials help withstand under-hood temperatures, vibration, and extended operating cycles.
| Weight | 16.25 lbs |
|---|---|
| Dimensions | 32 × 22.5 × 7 in |
| Brand | BOXI |
| Condition | New |
| CFM Rating | 897 cfm |
| Voltage (V) | 12 Volt |
| Fan Blade Material | Aluminum, Plastic |
| Fitment Type | Direct Replacement |
| Depth (in) | 3-11/16 Inch |
| Number Of Terminals | 4 |
| Height (in) | 19-7/16 Inch |
| Number Of Bolt Holes | 0 |
| Width (in) | 29-1/16 Inch |
| Number Of Connectors | 1 |
| Hardware Included | No |
| Control Module Included | Yes |
| Bracket Included | Yes |
| Hardwired Or Plug-In | Plug-In |
| Number Of Blades – Fan 1 | 7 |
| Warranty Terms | Two Years |
| year | Make | Model | submodel | engines |
|---|---|---|---|---|
| 2004 | Mercedes-Benz | C230 | Kompressor Classic, Kompressor Elegance, Kompressor Sport, Kompressor | L4 – 1.8L 1796cc 110ci GAS MPI Supercharged – 4 valve DOHC, L4 – 1.8L 1796cc GAS MFI Supercharged type 271.948 – 4 valve DOHC |
| 2004 | Mercedes-Benz | C240 | 4Matic, Base | V6 – 2.6L 2597cc GAS MFI type 112.916 – 3 valve SOHC, V6 – 2.6L 2597cc GAS MFI type 112.912 – 3 valve SOHC |
| 2004 | Mercedes-Benz | C32 AMG | Base | V6 – 3.2L 3199cc GAS MFI Supercharged type 112.961 – 3 valve SOHC |
| 2004 | Mercedes-Benz | C320 | 4Matic, Base, Elegance | V6 – 3.2L 3199cc GAS MFI type 112.953 – 3 valve SOHC, V6 – 3.2L 3199cc FLEX MFI type 112.946 – 3 valve SOHC, V6 – 3.2L 3199cc GAS MFI type 112.946 – 3 valve SOHC |
| 2004 | Mercedes-Benz | CLK320 | Base | V6 – 3.2L 3199cc GAS MFI type 112.955 – 3 valve SOHC |
| 2004 | Mercedes-Benz | CLK500 | Base | V8 – 5.0L 4966cc GAS MFI type 113.968 – 3 valve SOHC, V8 – 5.0L 4973cc GAS MFI type 113.968 – 3 valve SOHC |
